The global shift toward electric mobility has placed immense pressure on the supply chain to deliver high-performance hardware at sustainable price points. For a professional EV charger module manufacturer, the challenge lies in a complex balancing act: selecting premium internal components that ensure long-term reliability while optimizing production workflows to remain competitive. This delicate equilibrium determines not only the final price of the power module but also the total cost of ownership for charging point operators and fleet managers. Understanding the layers of this cost breakdown reveals how industry leaders manage to push the boundaries of energy density and conversion efficiency without compromising on economic viability.
Strategic Selection of Power Semiconductors
At the core of every high-efficiency charging solution is the power semiconductor. Modern power electronics have seen a significant transition from traditional silicon-based components to Wide Bandgap (WBG) materials. Leading manufacturers increasingly favor Silicon Carbide (SiC) technology for its superior thermal conductivity and high-speed switching capabilities.
- Efficiency Gains: While SiC MOSFETs carry a higher initial purchase price compared to standard silicon IGBTs, they allow the module to achieve peak efficiencies exceeding 97%. This reduces heat generation, which in turn allows for smaller, less expensive cooling systems.
- Thermal Management: Components that operate at higher temperatures with less energy loss minimize the need for heavy-duty heat sinks. A specialized EV charger module supplier like AcePower leverages these materials to create compact designs that do not sacrifice power output.
- Long-term Value: For B2B clients, the slightly higher component cost is offset by the reduction in energy waste over a ten-year operational lifespan. By selecting high-grade semiconductors, a manufacturer ensures that the hardware meets stringent international standards while offering a more attractive ROI for the end-user.
Innovations in Protection and Durability
The environment in which a DC charging module operates is often harsh, ranging from dusty urban centers to humid coastal regions. To protect the sensitive internal circuitry, manufacturers must choose between various insulation and protection methods. One of the most effective, albeit cost-intensive, methods is full glue filling or potting technology. This process involves encasing the entire PCB and its components in a specialized resin.
This protective measure serves multiple purposes. It provides exceptional vibration resistance, which is critical for modules installed in high-traffic public areas. Furthermore, it isolates the electronics from moisture and corrosive pollutants, significantly extending the service life of the unit. When an EV charger module manufacturer invests in high-quality potting materials, they are essentially trading a higher bill of materials for a lower warranty claim rate and better brand reputation. These robust protection standards are why specialized units can operate at altitudes of up to 4,000 meters or in temperature ranges from -40°C to +75°C without premature failure.
Manufacturing Efficiency through Modular Design
Production efficiency is the second pillar of cost management. To keep prices stable, a high-volume EV charger module supplier must implement scalable manufacturing processes. Modular architecture is the industry standard for achieving this. By designing a core platform that can be adapted for different power levels—such as 30kW, 40kW, or 50kW—a company can streamline its assembly lines and reduce the variety of parts held in inventory.
Standardization allows for automated testing and verification, which significantly lowers labor costs. Automated optical inspection (AOI) and advanced “burn-in” testing ensure that every unit leaving the factory meets the same rigorous quality benchmarks. This systematic approach to production helps AcePower maintain a high output capacity, such as 150,000 pieces per year, while keeping defects to a minimum. Efficient production also involves optimizing the “two-stage” power conversion topology (PFC + LLC), which simplifies the internal layout and reduces the time required for manual assembly.
Technical Specifications and Performance Metrics
The choice of components directly reflects the technical capabilities of the product. High-performance modules are expected to provide a wide output voltage range, typically from 150Vdc to 1000Vdc.

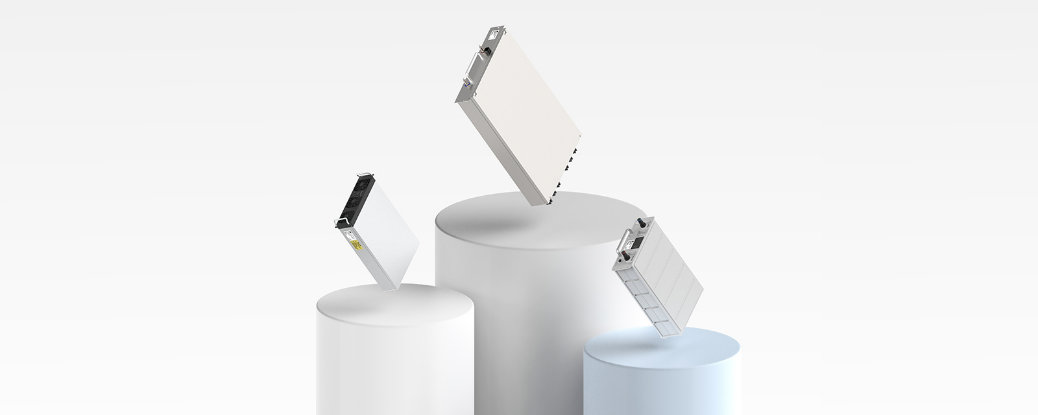

- 7kW DC Modules: Ideal for residential or small-scale commercial use, these units prioritize low noise and compact dimensions.
- 50kW High-Power Modules: These utilize full SiC designs to achieve 97.6% peak efficiency. They are engineered for ultra-fast charging stations where power density and thermal stability are the highest priorities.
- Liquid-Cooled Solutions: For the most demanding environments, liquid cooling replaces forced air to achieve even higher protection levels (IP67) and nearly silent operation, though at a higher manufacturing complexity.
The integration of advanced features like Vehicle-to-Grid (V2G) capabilities also adds to the component cost but provides significant market differentiation. A forward-thinking EV charger module manufacturer incorporates bidirectional charging features to allow vehicles to act as mobile energy storage units, adding value for grid operators and site owners.
Maximizing Investment in Charging Infrastructure
The ultimate goal of balancing component selection with production efficiency is to provide a product that is both high-performance and economically accessible. When a business chooses a reputable EV charger module supplier, they are investing in the research and development that goes into these balances. High-efficiency modules, such as those produced by AcePower, reduce the electricity cost for the operator.
Choosing a partner that focuses on Silicon Carbide technology and full potting protection ensures that the charging infrastructure is future-proof. These modules are designed to handle the evolving requirements of the global EV market while maintaining a low failure rate. By focusing on the “last degree” of power conversion efficiency, manufacturers enable a faster roll-out of ultra-fast charging networks worldwide, supporting the transition to a greener and more sustainable energy ecosystem.
